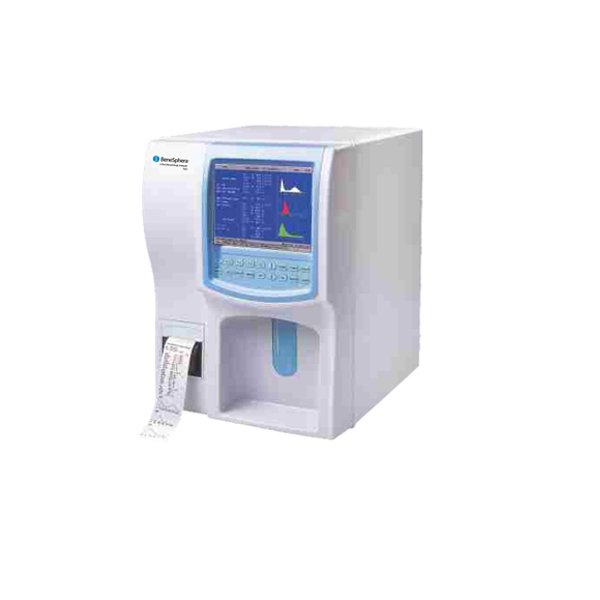

3-Part Differential

Hematology Analyzer

Parameter	Typical Specification
Parameters	WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT and Histogram for WBC, RBC, PLT
Principles	Electrical resistance for counting and SFT method for hemoglobin
Performance	WBC(10⁹/L) : Linearity Range 0.0-99.9 \| Precision (CV%) 3(4.0-15.0) RBC(10¹²/L) : Linearity Range 0.00-9.99 \| Precision (CV%) 2(3.00-6.50) HGB(g/L) : Linearity Range 0-300 \| Precision (CV%) 2(100-180) MCV(fL) : Linearity Range 40.0-150.0 \| Precision (CV%) 1(70.0-110.0) PLT(10⁹/L) : Linearity Range 10-999 \| Precision (CV%) 5(200-500)
Sample Volume	Prediluted : 20μL Whole Blood : 13μL
Aperture Diameter	80μm
Throughput	30 samples per hour
Carry over	WBC, RBC, HGB<0.5%, PLT<1%
Menu	Count, Review, Quality Control, Setup, Service, Calibration, Shutdown
Display	Color LCD display Resolution: 640 x 480
Input / Output	RS232x2, 1 parallel printer(optional), 1 bar code scanner(optional), 1 keyboard interface
Printout	Thermal recorder, 50mm width paper, various printout formats, printer optional
Operating Environment	Temperature: 15°C~30°C Humidity: 30%~85%
Power requirement	AC 100V~240V, 50/60Hz
Dimension	322 (W) x 437 (H) x 386 (D)
Weight	23Kg

CL-900i
